I mean how to model a spring that it has circular axis and it hasn't strigh axis.

It would be of help if you drew a rough sketch on paper. I dont understand what youre after, and when Constantins link doesnt help you, then i understand even less what youre after.

One real simple way to make a spring Inventor software. Go to the 3-D sketch bar, and use the coil. You can set the coil in length, diameter and number of coils- you can also set the coil ends if you want flat ends. Then set a plane at the point of the coil and perpendicular to it . Then set a sketch on the new plane. Draw a circle ⭕️ on the new plane, with the circle center at the point of the plane. The diameter of this circle will be the diameter of the wire that makes the coil. Then use the extrude path function, the circle will be the Element and the coil will be the path. So this is a simple way to make a coil without any specialty functions. Hope that this helps 👍.

This kind of spring?

Spring that you can find in simering?

Yes.this pic show type of spring that i want.

The spring that used in lipseal.

How model this type of spring in inventor?

"A Spring that has a ring path"

like this ?

Yes.

Exactly.

I know.

It's a sweep.

You can change it by using torsion.

I'm not good at English.

Please excuse me.

How-to posted here: https://blogs.rand.com/manufacturing/2019/10/modeling-a-simering-in-inventor.html

3D model for you posted here:

https://grabcad.com/library/ring-spring-1

Thanks very much.

It was best answer.

and how about rectangular profile with this manner?

i mean how model circular spring with rectangle profile?

i have got model with rectangular section by this manner but it was like this pic:

what is problem?

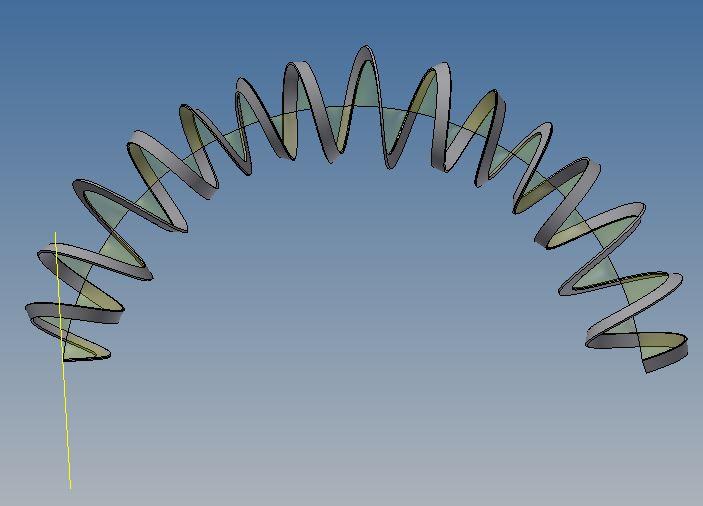

the pic shows that diameter in lenght of path isnt equal.
